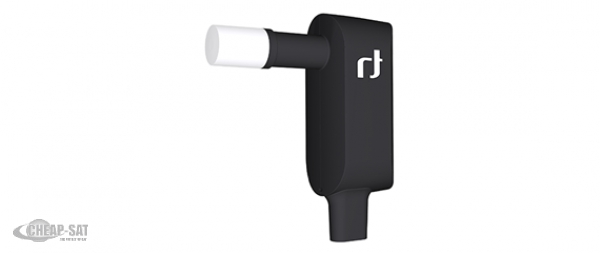

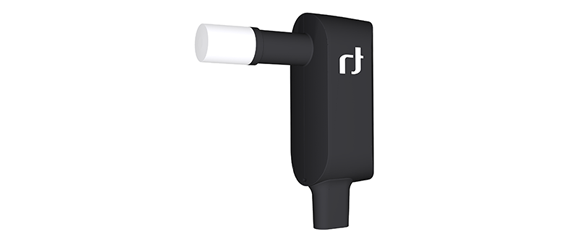

This innovative LNB was specifically designed for installations that make use of several LNBs on a satellite dish antenna. It’s novel slim feed technology incorporates advanced dielectric materials and a perfect front end design. This technology ensures maximum energy transfer from the dish to the LNB circuits also when the LNB position is off the focal point. Furthermore, it’s long neck allows placing the LNBs closely next to each other and gain access to satellites typically too close in their orbital position to be received with standard neck LNBs on a certain satellite dish antenna. This LNB enables the reception of signals from one satellite and its distribution to maximum two Set Top Boxes with Single Tuner (or to one STB with Twin Tuner).
Main Features :
- Novel Slim Feed Technology
- Low Phase Noise, DVB-S2 (HDTV) compliant
- Low Noise Figure
- Low Power Consumption
- High Cross Polarization IsolationH
- High Frequency Stability
___________________________________________________________________________________________________________
| Low Band Input Frequency Range |
10.7 ~ 11.7 GHz |
| Low Band Output Frequency Range |
950 ~ 1950 MHz |
| Low Band LO Frequency |
9.75 GHz |
| High Band Input Frequency Range |
11.7 ~ 12.75 GHz |
| High Band Output Frequency Range |
1100 ~ 2150 MHz |
| High Band LO Frequency |
10.6 GHz |
| Noise Figure |
0.2 dB Typ. (0.7 dB Max.) |
| LO Initial Accuracy |
+/- 1.0 MHz Max. |
| LO Temperature Drift |
+/- 3.0 MHz Max. |
| Phase Noise (@ 10 kHz) |
- 90 dBc / Hz Max. |
| Conversion Gain |
60 dB Min. |
| Gain Ripple (Over 26MHz Bandwidth) |
+/- 0.75 dB |
| Gain Variation (Over Full Band) |
+/- 4 dB Max. |
| Image Rejection |
40 dB Min. |
| 1 dB Compression Point (@ Output) |
0.0 dBm Min. |
| Cross Polarization Isolation |
22 dB Min. |
| Control Signal Ca (Vertical Polarization) |
11.0 ~ 14.0 V |
| Control Signal Cb (Horizontal Polarization) |
16.0 ~ 20.0 V |
| Control Signal Cc (Band Switching) |
22 +/- 4 kHz |
| Output VSWR |
2.0 : 1 |
| In-Band Spurious |
- 60 dBm Max. |
| Current Consumption |
180 mA Max. @ 11 ~ 20 V |
| Operating Temperature |
- 30 °C ~ + 60 °C |
| Output Impedance |
75 Ω |
| Output Connector |
F-Type (Female) |
| Weight |
181 g |
