Produktbeschreibung:

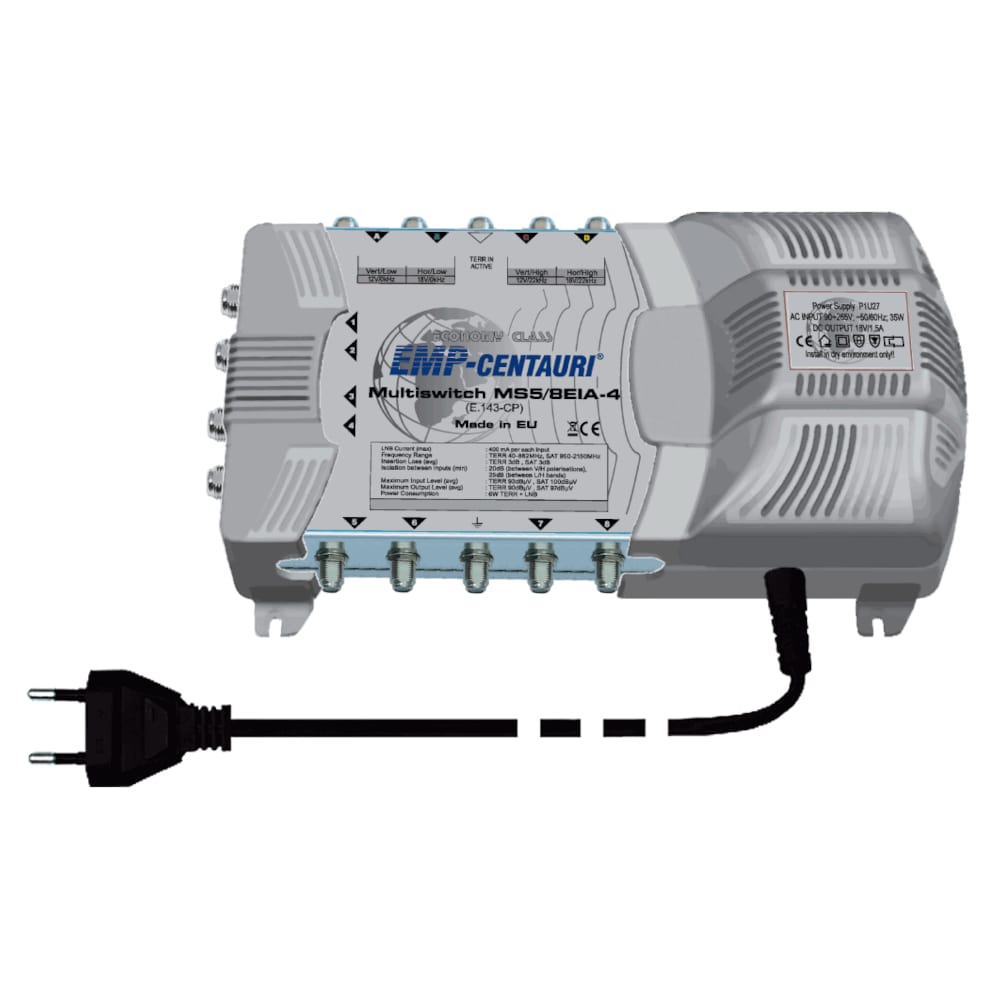

5in/8out stand-alone Multischalter für die Distribution von terrestrischen /aktiv/ und SAT-Signalen von 1 SAT-Position und bis zu 6 Teilnehmern.
Kurze Beschreibung:
| Parameter |
Bedingung |
Wert |
| Frequency range |
Sat. inputs |
950-2150 MHz |
| Terr. input |
40-862 MHz |
| Outputs |
40-2150 MHz |
| Control |
|
13/18 V + 0/22 kHz |
| Insertion loss |
Sat. |
3 dB avg |
| Terr. |
3 dB avg |
| Sat. inputs isolation |
Between V/H polarisations |
20 dB min |
| Between low/high bands |
25 dB min |
| Maximum input level* |
Sat. |
90 dBµV avg |
| Terr. |
93 dBµV avg |
| Maximum output level* |
Sat. |
87 dBµV avg |
| Terr. |
90 dBµV avg |
| Power consumption |
From each receiver |
40 mA (18V) |
| From internal power supply |
6 W + LNB |
| Dimensions (w,d,h) |
|
27.5 x 15.2 x 8.7 cm
(power cord length 130 cm) |
|
